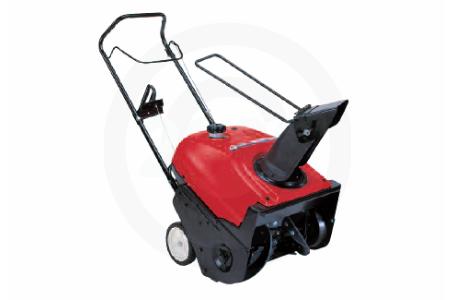

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The single-stage HS520C is lightweight and manoeuvrable at only 37 kg (81.6 lb). It is powered by an easy-start, commercial-grade, GC160, 4-stroke, overhead cam (OHC) Honda engine and clears a 20-inch (50.8-cm) path. It is perfect for walkways, paved and interlocking-stone driveways.

  • Single-stage, semi-self propelled, clears a 20 in/51 cm width.
  • Honda GC160, OHC, 4-stroke engine
  • Auger-assisted forward drive
  • 8 m/26 ft. max. discharge; up to 29 metric tons (32 tons)/hr.
  • 120 volt AC electric start (HS520K1CS model only)
Specifications
  • Discharge Type: Single stage
  • Axle Type: Wheel
  • Drive Type: Auger assist
  • Clearing Width: 50.8 cm (20.0 in.)
  • Intake Housing Height: 30.5 cm (12.0 in.)
  • Auger Diameter: 23.0 cm (9.1 in.)
  • Auger Type: Rubber edge
  • Auger Drive: Belt
  • Auger Height Adjustment: Scraper bar
  • Chute Rotation: Manual lever
  • Chute Turning Radius: 220 deg.
  • Deflection Control: Manual lever
  • Chute Material: Steel
  • Maximum Throw Distance: 8 m (26 ft.) - Snow volume capacity and throw distance will vary with individual snow conditions
  • Clearing Snow Volume Capacity (Approximate): Up to 29 metric tons (32 tons/hr.) - Snow volume capacity and throw distance will vary with individual snow conditions
Engine
  • Engine Type: GC160 4-stroke, OHC, single cylinder
  • Engine Manufacturer: Honda
  • Displacement: 160 cc (9.8 CID)
  • Ignition System: Transistorized
  • Recoil Starter: Standard
  • Lubrication System: Forced splash
  • Oil Capacity: 0.60 l (21.1 fl. Imp. oz.)
  • Recommended Fuel: Regular unleaded gasoline (87 Octane)
  • Fuel Capacity: 1.3 l (45.8 fl. Imp. oz.)
  • Operational Time per Tankful: 1.6 hrs. - Actual fuel consumption depends on operating load
Dimensions
  • Overall Length: 125.7 cm (49.5 in.)
  • Overall Width: 52.6 cm (20.7 in.)
  • Overall Height: 102.6 cm (40.4 in.)
  • Dry Weight: 37.0 kg (81.6 lbs.)
Warranty
  • 24-month non-commercial use
  • 3-month commercial-use warranty

Specifications

Engine
Engine Type GC160 4-stroke, OHC, single cylinder
Engine Manufacturer Honda
Engine Displacement 160 cc (9.8 CID)
General
Width 52.6 cm (20.7 in.)
Starting Ignition System : Transistorized ; Recoil Starter : Standard
Max Discharge 8 m (26 ft.) - Snow volume capacity and throw distance will vary with individual snow conditions
Drive Type Auger assist
Weight 37.0 kg (81.6 lbs.)
Fuel Capacity 1.3 l (45.8 fl. Imp. oz.)

Compare Models

 Print








Year 2009
Manufacturer Honda Power Equipment
Model HS520C
Style Walk-Behind
MSRP* $999.00
Engine
Horse Power
Engine Type GC160 4-stroke, OHC, single cylinder
Engine Manufacturer Honda
Engine Displacement 160 cc (9.8 CID)
General
Width 52.6 cm (20.7 in.)
Starting Ignition System : Transistorized ; Recoil Starter : Standard
Max Discharge 8 m (26 ft.) - Snow volume capacity and throw distance will vary with individual snow conditions
Drive Type Auger assist
Wheel Size
Weight 37.0 kg (81.6 lbs.)
Fuel Capacity 1.3 l (45.8 fl. Imp. oz.)
