$2,199.00

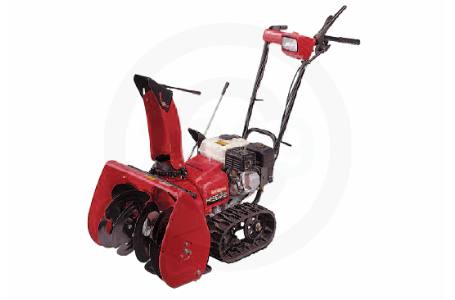

2009 Honda Power Equipment HS622TCS
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The dual-stage HS622TCS features a 120 VAC electric start. It is powered by an ultrarobust, GX160, 4-stroke, overhead valve (OHV) Honda engine. It clears a 22-inch (55-cm) path, throws snow up to 14 m (46 ft.)* and has a 2-speed-plus-reverse, gear-driven transmission. The auger is shaft driven through a dry, multi-disc clutch, so there are no belts to worry about. The two tracks are also shaft driven and have 3 height settings that can raise or lower the auger housing for varying snow and surface conditions.

  • Dual-stage, track drive, clears a 22 in/56 cm width
  • Honda GX160K1, OHV, 4-stroke engine
  • 2-speed forward transmission plus reverse
  • 3-way adjustable auger housing height
  • 14 m/46 ft. max. discharge; up to 37 metric tons (41 tons)/hr.
  • 120 volt AC electric start (HS622TCS model only)
  • Work light (HS622TCS model only)
Specifications
  • Discharge Type: Dual stage
  • Axle Type: Track drive
  • Drive Type: Gear mesh transmission
  • Speeds: 2 forward / 1 reverse
  • Maximum Ground Speed: 1: 11.4 m/min. (37.4 ft./min.)
  • Clearing Width: 55.0 cm (21.7 in.)
  • Intake Housing Height: 42.0 cm (16.5 in.)
  • Auger Diameter: 30.5 cm (12.0 in.)
  • Auger Type: Steel
  • Auger Drive: Dry, multi-disc clutch
  • Auger Height Adjustment: 3 position adjuster
  • Chute Rotation: Manual lever
  • Chute Turning Radius: 195 deg.
  • Deflection Control: Manual lever
  • Chute Material: Steel
  • Maximum Throw Distance: 14 m (46 ft.) - Snow volume capacity and throw distance will vary with individual snow conditions
  • Clearing Snow Volume Capacity (Approximate): Up to 37 metric tons (41 tons/hr.) - Snow volume capacity and throw distance will vary with individual snow conditions
Engine
  • Engine Type: GX160K1 4-stroke, OHV, single cylinder
  • Engine Manufacturer: Honda
  • Displacement: 163 cc (10.0 CID)
  • Ignition System: Transistorized
  • Recoil Starter: Standard
  • Electric Starter: Standard 120 VAC type
  • Lubrication System: Forced splash
  • Oil Capacity: 0.60 l (21.1 fl. Imp. oz.)
  • Recommended Fuel: Regular unleaded gasoline (87 Octane)
  • Fuel Capacity: 3.50 l (0.77 Imp. gal.)
  • Operational Time per Tankful: 3.5 hrs - Actual fuel consumption depends on operating load
Dimensions
  • Overall Length: 150.0 cm (59.1 in.)
  • Overall Width: 55.0 cm (21.7 in.)
  • Overall Height: 112.5 cm (44.3 in.)
  • Dry Weight: 77.0 kg (169.8 lbs.)
Options
  • Lighting Coil
  • Worklight
Warranty
  • 24-month non-commercial use
  • 3-month commercial-use warranty

Specifications

Engine
Engine Type GX160K1 4-stroke, OHV, single cylinder
Engine Manufacturer Honda
Engine Displacement 163 cc (10.0 CID)
General
Width 55.0 cm (21.7 in.)
Starting Ignition System : Transistorized ; Recoil Starter : Standard ; Electric Starter : Standard 120 VAC type
Max Discharge 14 m (46 ft.) - Snow volume capacity and throw distance will vary with individual snow conditions
Drive Type Gear mesh transmission
Weight 77.0 kg (169.8 lbs.)
Fuel Capacity 3.50 l (0.77 Imp. gal.)

Compare Models

 Print








Year 2009
Manufacturer Honda Power Equipment
Model HS622TCS
Style Walk-Behind
MSRP* $2,199.00
Engine
Horse Power
Engine Type GX160K1 4-stroke, OHV, single cylinder
Engine Manufacturer Honda
Engine Displacement 163 cc (10.0 CID)
General
Width 55.0 cm (21.7 in.)
Starting Ignition System : Transistorized ; Recoil Starter : Standard ; Electric Starter : Standard 120 VAC type
Max Discharge 14 m (46 ft.) - Snow volume capacity and throw distance will vary with individual snow conditions
Drive Type Gear mesh transmission
Wheel Size
Weight 77.0 kg (169.8 lbs.)
Fuel Capacity 3.50 l (0.77 Imp. gal.)
